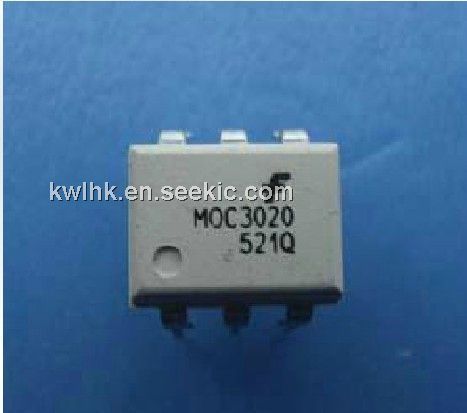

MOC3020

MOC3020, 6-pin dip random-phase optoisolator, 3 Volts, 60 mA, 100 mW, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.26~0.37 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
100 ~ 500 :	0.37 / Piece
500 ~ 1000 :	0.33 / Piece
1000 ~ 1500 :	0.26 / Piece

PartNumber:: MOC3020

Brand:: Fairchild Optoelectronics Group - Fairchild | D/C: 05+

Availability:: Supply Ability: 10000/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Mr. harry's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-04

From Other Seller

Part Number:MOC3020
US $0.26 - 0.37
Quantity:

piece

Product Summary

The MOC3020 is a 6-pin dip random-phase optoisolator. The MOC3020 consists of gallium arsenide infrared emitting diodes, optically coupled to a silicon bilateral switch. Applications are (1)Solenoid/Valve Controls; (2)Static ac Power Switch; (3)Lamp Ballasts; (4)Solid State Relays; (5)Interfacing Microprocessors to 115 Vac Peripherals; (6)Incandescent Lamp Dimmers; (7)Motor Controls.

Parametrics

MOC3020 absolute maximum ratings: (1)Reverse Voltage VR: 3 Volts; (2)Forward Current — Continuous IF: 60 mA; (3)Total Power Dissipation @ TA = 25°C Negligible Power in Triac Driver PD: 100 mW; (4)Junction Temperature Range TJ: -40 to +100 °C; (5)Ambient Operating Temperature Range(2)TA: -40 to +85 °C; (6)Storage Temperature Range(2)Tstg: -40 to +150 °C; (7)Soldering Temperature (10 s)TL: 260 °C.

Features

MOC3020 features: (1)Reverse Leakage Current (VR = 3 V)IR: 0.05 to 100 mA; (2)Forward Voltage (IF = 10 mA)VF: 1.15 to 1.5 Volts; (3)Holding Current, Either Direction IH: 100 mA.
